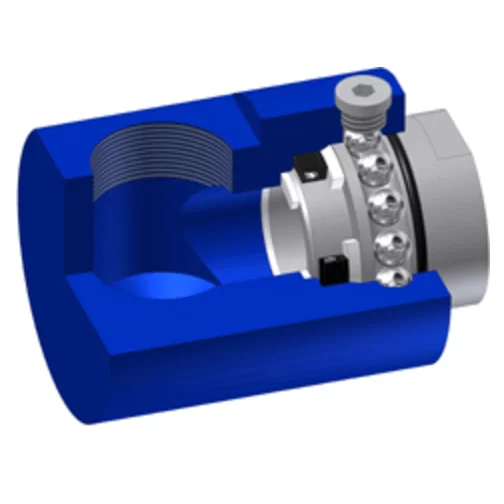

Type LT Swivel Joint threaded connection
Typical media: Swivel Joint with threaded connection for Diesel, Ethanol and LPG.
Connections
Threaded female for inflow and threaded female for outflow – female, NPT, BSP.
Ball race: 1
Features
Perfect concentric run-out and easy handling.
Swivel Joint Type LT specification
| Nominal diameter | G1/4″ up to G2″ [alternatively in NPT] |
| Working pressure | 100 bar /1450psi * |
| Working temp. | -55°C up to 250°C / -67°F up to 482°F * |
| Material | 42CrMo4, 1.4571 [other materials on request e.g. Aluminium, Hastelloy] |
| Gasket material | NBR, Viton, PTFE, HPU |
| Ball material | Stainless steel |
| Connections | Threaded (female, NPT, BSP) |
| Style | 10, 11, 12 |
| Application | Universal |
